팬리스/소형 3.5 & Nano 규격

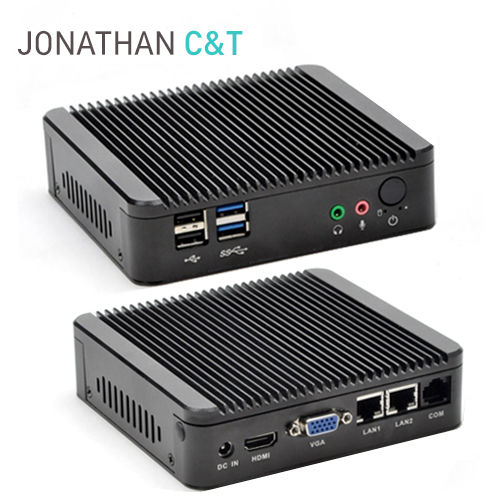

JCT-FN-PICO/J1900
신찬솔
2022. 4. 4. 16:23
KC인증 MSIP-REI-JPW-JCT-FN-PICO
J1900/COM1(RS232*1)/DC12V
=> PICO 전용 시리얼케이블
=> PICO 무선랜 장착 가능
=> PICO 전용 브라켓
CPU Intel Bay Trail J1900 QuadCore 2.0G
RAM 1 x SO-DIMM, DDR3 4G 1066/1333MHz
Display 1 x HDMI, 1 x D-SUB
Dual Display Support HDMI, VGA
Storage 1 x MSATA (32/64/128/256GB)
Ethernet 2 x RJ45 Gigabit LAN
BIOS AMI 64MBit DPI Flash ROM
Audio Realtek ALC662 6-Channel HD Audio
1 x Line-out, 1 x Mic-in
Expansion 1 x Mini PCI-E
Front-Panel I/O 2 x USB3.0, 2 x USB2.0
Power on/off button, 1 x Line-out, 1 x Mic-in
Back-Panel I/O 1 x DC IN 12V
1 x HDMI
1 x VGA
2 x RJ45 LAN
1 x RS232(Optional)
Power DC 12V
Dimension 134 x 124 x 36 mm
Weight 0.5 kg
Environmental Operating Temperature : -5℃～45℃ / Humidity : 10% ~ 90%
OS Windows 7, Windows 8, Windows 8.1, Windows 10
