JPS-FN-TOP

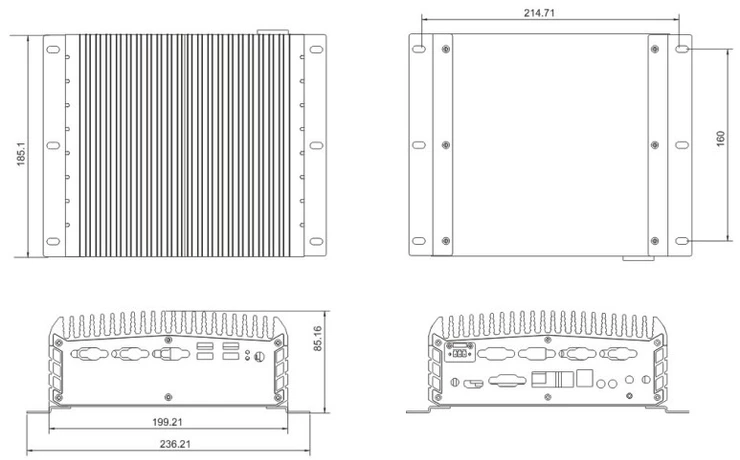

size : 236*185*85mm
Processor : Integrated Intel 8th Mobile Kaby lake-U singal Chip CPU
Chipset : Intel® Kaby lake-U serial SOC
Ram socket : 2 *DDR4 SODIMM 260 Socket
Lan Port : Onboard 2*Gigabit LAN
Audio : Onboard HDA ALC662
Storage : 1*SATA3.0 1*MSATA
Color : Silver
Rear panel interface : 2*LAN 1*HDMI 1*VGA 4*COM 1*DC 1*MIC-IN
1*LINE-OUT 2*USB3.0 2*WIFI Antenna interface 1*Ground Interface
Front panel interface : 2*COM 1*GPIO 4*USB2.0 1*power switch 1*Hard drive indicator 1*Power Indicator
Features
>>Intel 8th Mobile Kaby lake-U singal Chip CPU；
>>2 *DDR4 SODIMM 260 Socket；
>> Providing 1*VGA,1*HDMI 1.4（support 4k display output
>> 6*RS-232or 4*RS-232 2*RS-485
>> Support power-on automatic power-on function, jumper selection
>> 12V DC input
Specification
CPU Integrated Intel 8th Mobile Kaby lake-U singal Chip CPU
RAM DDR4 2133Mhz
Display Intel HD Graphics 620 VGA+HDMI
Ethernet 2*Intel I211AT When the
I/O interface is 4 USB, there is only one Intel Provided by default
2 x RJ45
Storage 1 x SATA 3.0
Onboard SSD 16/32/64/128G（SATA2 and onboard SSD for optional）
Audio Raychem HD ALC662 audio decoding
Expansion 2 x Mini-PCIE, Support PCIe and USBDevice
1 x MSATA Support
Rear I/O
2 x USB 3.0 1 x HDMI 1 x VGA 2 x LAN 1 x Line-out, 1 x Mic-in 1 x DC-IN I/O Headers 4 x USB3.0 compatible 6 x RS232 1 x Line-out, 1 x Mic-in
Power 12V DC in
Mechanical&Environmental Mini-ITX 170mm x 170mm
Temperature : '-10℃～50℃, Humidity : 5 ~ 95%
OS Windows 10, Linux
