JTT-FN810
Features
>> Intel® 펜티엄골드 5405U 2.3G
Intel® Core i3-8145U 2.1G~3.9G
Intel® Core i5-8265U 1.6G~3.9G
Intel® Core i7-8565U 1.8G~4.6G
>> 2 x SO-DDR4 SDRAM Slot, up to 64GB
>> 1*HDMI, 1*DP
>> 1*LAN
>> 1*M.2, 4*USB3.0, 2*USB2.0
>> 12V DC input
Specification
CPU Intel® 펜티엄골드 5405U 2.3G Intel® Core i3-8145U 2.1G~3.9G
Intel® Core i5-8265U 1.6G~3.9G Intel® Core i7-8565U 1.8G~4.6G
RAM 2 x SO-DDR4 SDRAM Slot, up to 64GB Dual Channel, DDR4 2133/2400 260pin
Display 1 x HDMI, 1 x DP Dual Display Support HDMI, DP

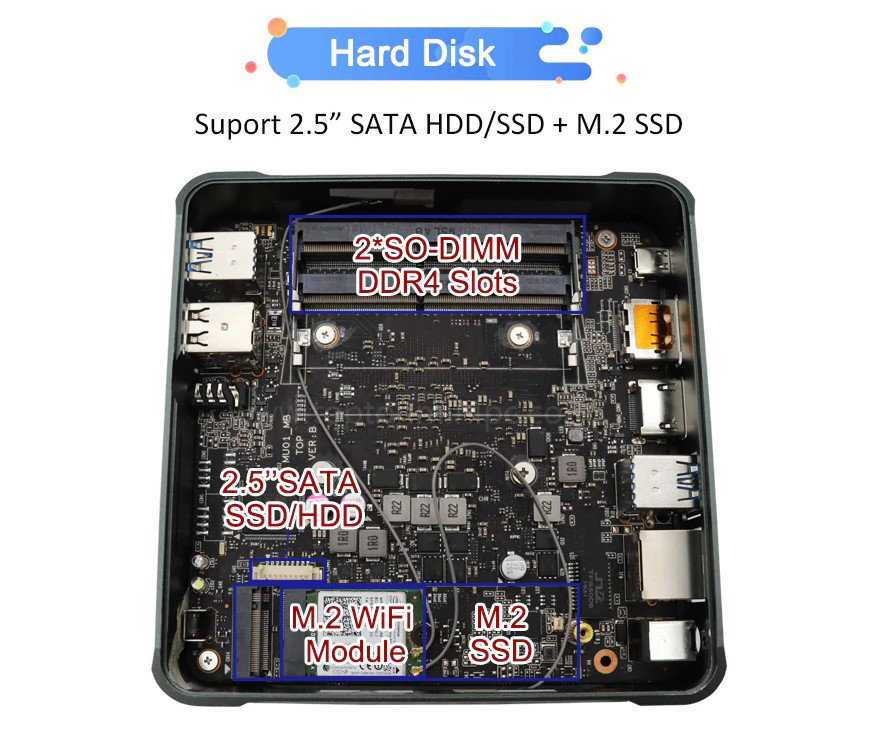

Storage M.2 1 x M.2 22*80 SSD for NVMe/SATA3.0 SATA 1 x SATA3.0 slot for 7.0mm SATA HDD/SSD
Ethernet Onboard RTL8111 PCI-E Gigabit Ethernet NIC 10/100/1000 BaseT LAN
Video Intel® UHD Graphics 620/610
Audio Azalia Codec support 2.1 channel output High Definition Audio Controller

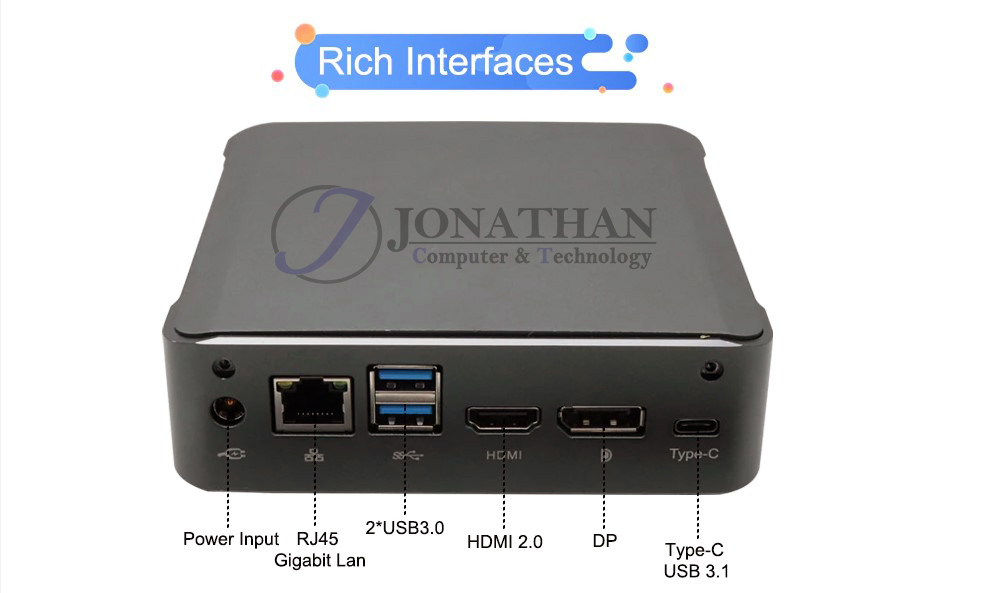

Expansion 1 x Mini PCI-E Input/output port Switch 1 x Power On/Off Switch LED 1 x LED USB 4 x USB3.0, 2 x USB2.0 USB-C 1 x Type-C USB3.1
Display 1 x DP1.2, 1 x HDMI2.0a supports dual 4K@60Hz, HDR LAN 1 x RJ45 Giga LAN
Power DC 12V
Dimension 128 x 128 x 38 mm
Weight Weight Net 0.8kg, Gross 1.5kg
Environmental Operating Temperature 0/70, Humidity 0%~90%
OS Windows 10, Linux, Ubuntu etc
