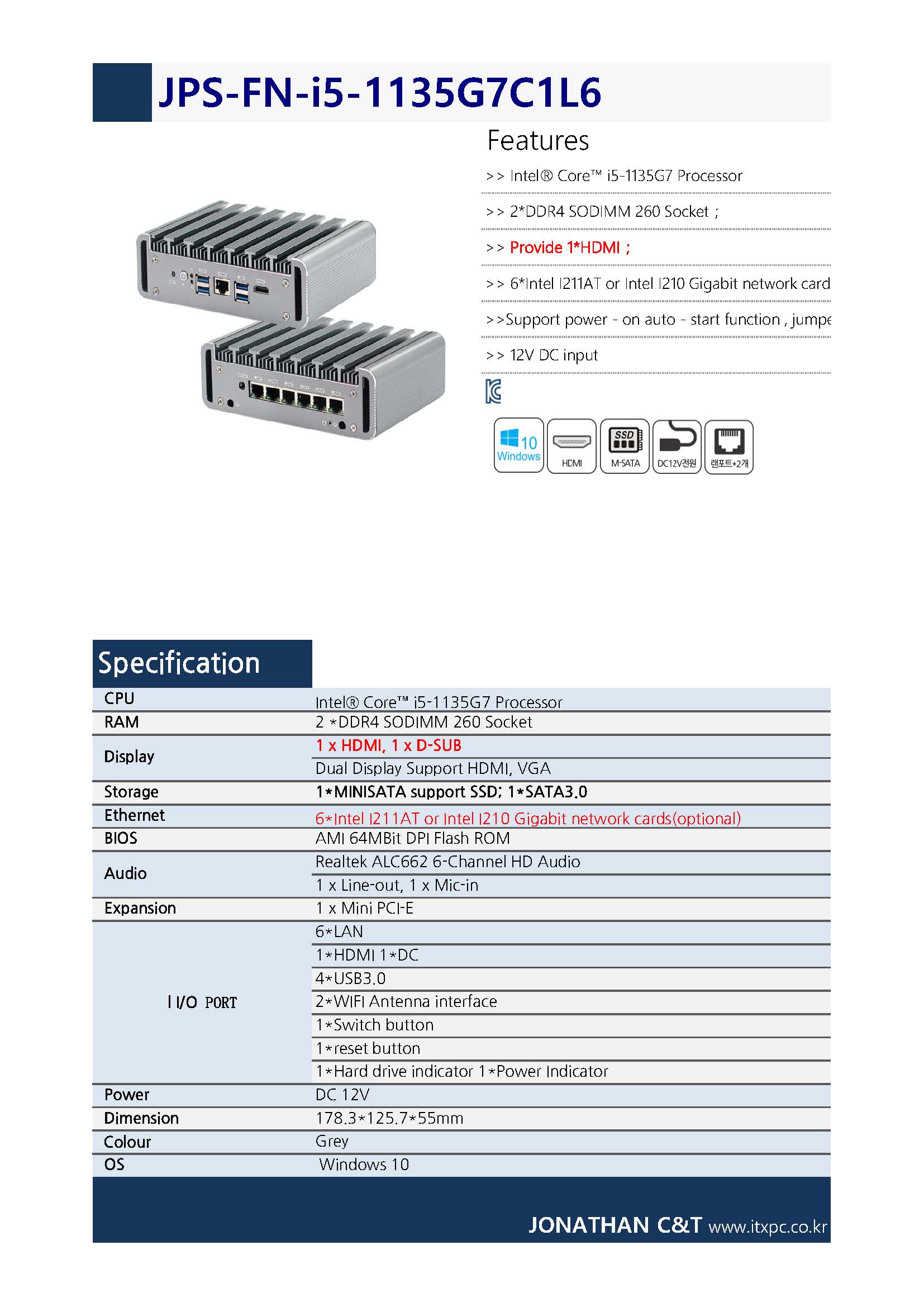

JPS-FN-i5-1135G7C1L6

JPS-FN-i5-1135G7C1L6







Features

>> Intel® Core™ i5-1135G7 Processor

>> 2*DDR4 SODIMM 260 Socket；

>> Provide 1*HDMI；

>> 6*Intel I211AT or Intel I210 Gigabit network cards(optional）；

>>Support power - on auto - start function , jumper selection；

>> 12V DC input



Specification

Intel® Core™ i5-1135G7 Processor

RAM 2 *DDR4 SODIMM 260 Socket

Display 1 x HDMI, 1 x D-SUB Dual Display Support HDMI, VGA

Storage 1*MINISATA support SSD; 1*SATA3.0

Ethernet 6*Intel I211AT or Intel I210 Gigabit network cards(optional）

BIOS AMI 64MBit DPI Flash ROM

Audio Realtek ALC662 6-Channel HD Audio 1 x Line-out, 1 x Mic-in

Expansion 1 x Mini PCI-E  l I/O PORT 6*LAN  1*HDMI 1*DC   4*USB3.0    2*WIFI Antenna

interface 1*Switch button   1*reset button   1*Hard drive indicator 1*Power Indicator

Power DC 12V

Dimension 178.3*125.7*55mm

Colour Grey

OS  Windows 10 　 　 　 　 　 J

JONATHAN C&T www.itxpc.co.kr
