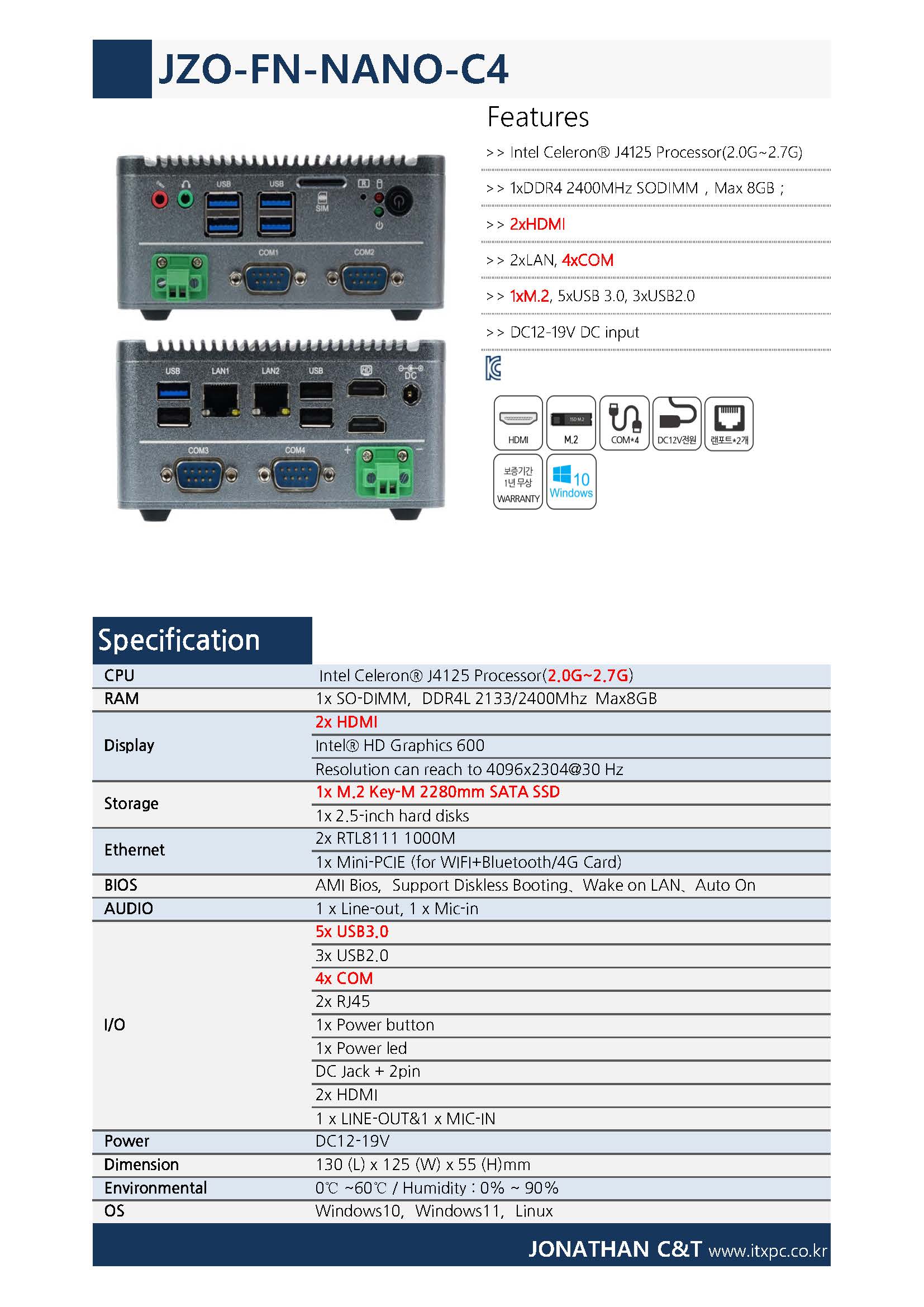

JZO-FN-NANO-C4







Features

>> Intel Celeron® J4125 Processor(2.0G~2.7G)

>> 1xDDR4 2400MHz SODIMM，Max 8GB；

>> 2xHDMI

>> 2xLAN, 4xCOM

>> 1xM.2, 5xUSB 3.0, 3xUSB2.0

>> DC12-19V DC input



Specification

CPU  Intel Celeron® J4125 Processor(2.0G~2.7G)

RAM 1x SO-DIMM，DDR4L 2133/2400Mhz  Max8GB

Display 2x HDMI Intel® HD Graphics 600 Resolution can reach to 4096x2304@30 Hz

Storage 1x M.2 Key-M 2280mm SATA SSD 1x 2.5-inch hard disks 　

Ethernet 2x RTL8111 1000M 1x Mini-PCIE (for WIFI+Bluetooth/4G Card)

BIOS AMI Bios，Support Diskless Booting、Wake on LAN、Auto On

AUDIO 1 x Line-out, 1 x Mic-in

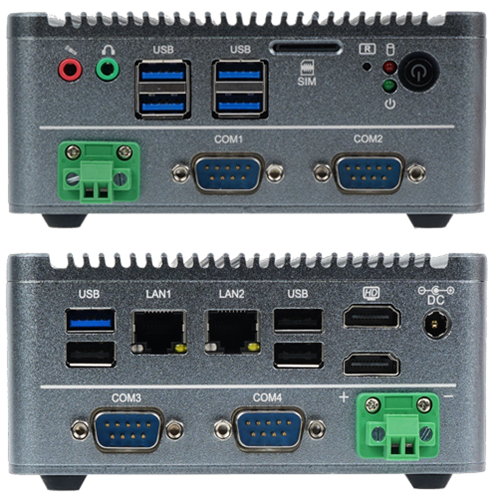

I/O 5x USB3.0 3x USB2.0 　 4x COM 2x RJ45 1x Power button

1x Power led DC Jack + 2pin 2x HDMI 1 x LINE-OUT&1 x MIC-IN 　

Power DC12-19V

Dimension 130 (L) x 125 (W) x 55 (H)mm

Environmental 0℃ ~60℃ / Humidity : 0% ~ 90%

OS Windows10，Windows11，Linux
