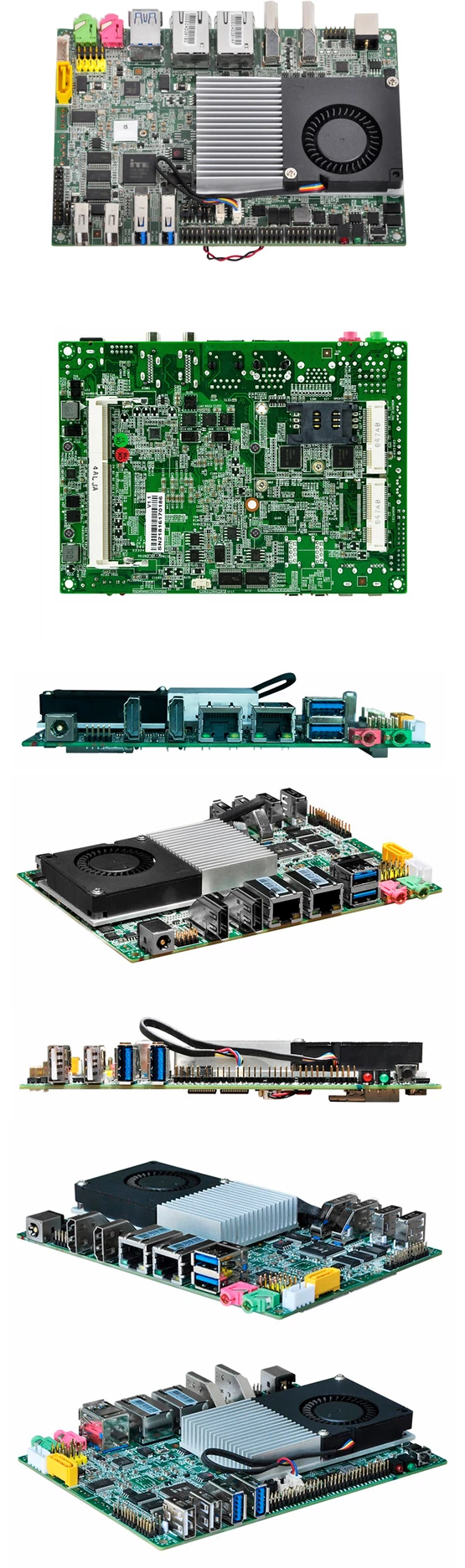

JQT-i5-4200-COM6 (1150/DDR3/HDMI/RS232*6)









Features

>> Intel Core i5 4200U Haswell SOC Processor

>> 1*DDR3 1333/1600MHz up to 8GB

>> 2*HDMI, 1*VGA(Optional), RTC, Power Auto-On

>> 2*LAN, 6*RS232, 1*RS485(Optional)

>> SATA3.0, MSATA, 4*USB 3.0, 2*USB 2.0

>> 12V DC input

KC인증 MSIP-REM-JPW-JQT-FN350







CPU Intel Core i5-4200U 2.6G

RAM Single channel DDR3L 1333/1600MHz SDRAM (Max. 8GB)

Display Intel HD Graphics 4400

2 x HDMI

1 x D-sub(Optional)

Ethernet 10/100/1000Mbps

2 x RJ45(Intel i211-AT Gigabit LAN)

Wake on LAN

BIOS AMI BIOS, 64MBit BIOS

Storage 1 x SATA 3.0

1 x Mini PCIE port(for MSATA SSD)

Audio Realtek HD ALC662

Expansion 1 x PCI Express Full-Mini Card connector (for MSATA SSD)

1 x PCI Express Half-Mini Card connector (for WIFI and Bluetooth)

1 x SIM Slot  /  1 x Front panel header

1 x SATA 3.0 connector (6Gb/s)  /  1 x SATA power connector

1 x DDR3 SO-DIMM socket 6 x RS232 headers  /  1 x D-sub header

2 x USB 2.0 header / 1 x Audio header

1 x GPIO header  /  1 x Automatically boot jumper

Front I/O 1 x Power LED, 1 x HDD LED

2 x USB3.0, 2 x USB2.0

Rear I/O 1 x Line-out, 1 x Mic-in

2 x LAN

2 x USB3.0

1 x DC-IN

2 x HDMI

Power 12V DC in

Mechanical&Environmental 3.5" Industrial Motherboard

148mm x 104mm(LxW)

Temperature : '-10℃～50℃, Humidity : 5 ~ 95% ​

OS Windows 7 , Windows 8 , Windows 10, Linux
