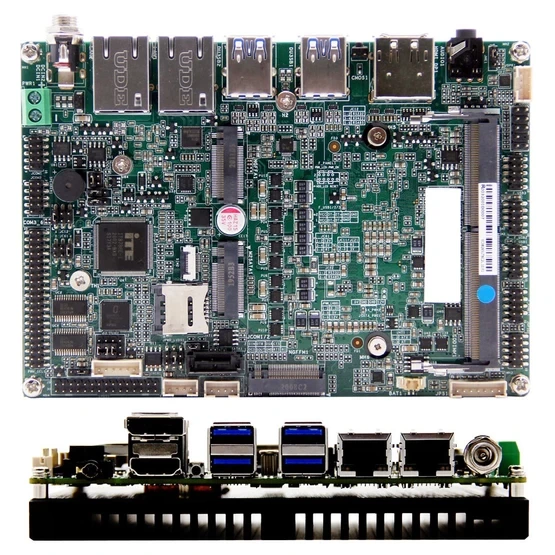

JZO-350 I5-8265U

Specification

CPU Intel®8th I5-8265U Quad 3.90Ghz

RAM 1*260Pin SO-DIMM DDR4

Display Dual Display Support HDMI, DP, LVDS1 x DP1 x HDMI

Ethernet 1*i219,1*i211/210AT Gigabit LAN

BIOS AMI BIOS

Audio Realtek ALC662

Storage 1 x M.2 Key B （SATA SSD or 4G）1 x M.2 Key M （NVME&SATA）

Expansion 1 x M.2 Key （SATA SSD or 4G）,1 x M.2 Key ，

Support WIFI+Bluetooth6 x RS232

Rear Panel I/O 2 xLAN4 x USB3.11 x DP 1 x HDMI 1 x AUDIO（Line out & Mic）

1 x CMOS 1 x DC

I/O Headers 2 x COM PIN ,1 xCOM_CONN PIN（4 xCOM）3 x F_USB2.0 PIN（Support 6 xUSB2.0）1 x GPIO1 x LVDS PIN1 x F_PANEL PIN

PowerDC 12-24V Power supply

Mechanical&Environmental 146 mm X 102 mm

Operating temperature：-10℃~60℃

OS Windows 10/LinuxJONATHAN C&T www.itxpc.co.kr
